1 x Impact anchor/ Drop-in anchor galvanised M10 incl. technical approval

1 x Impact anchor/ Drop-in anchor galvanised M10 incl. technical approval

• Approved for anchoring in non-cracked concrete
• Quick and economic fitting

Application:

The drop-in anchor is perfect for fixing climbing holds to non-cracked concrete.

Properties:

• Drop-in anchors suit all screws and thread rods with metric thread
• The low embedment depth reduces the drilling time and provides economic fixing
• After driving repeated removing or fixing is possible as the anchor itself remains in the drill hole
• Electrolytically galvanised
• Approval no. ETA-04/0011 for anchoring in non-cracked concrete
• Approval no. Z-21.1-1745 for anchoring in lightweight ceiling linings
• Fire prevention checked

Principle of Operation:

After setting into the drill hole, the nose of the drop-in anchor is forced apart with a setting tool. Then the climbing hold is screwed into the inside thread.

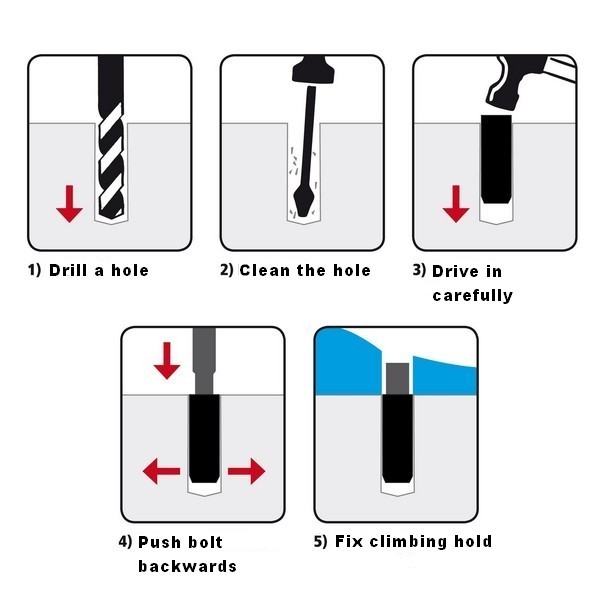

Instruction for Use:

• Drill a hole
• Clean the drill hole with a brush and/or a blowout shot
• Insert the drop-in anchor to the effective anchoring depth. This is reached when the expanding sleeve doesn't protrude beyond the concrete surface
• By hitting the cone via the setting tool, the anchor is fixed. It is duly set when the setting tool is in contact with the sleeve
• Screw the climbing hold into the thread.(Don't use more torque than allowed according to the table of technical data)

Technical Data:
